Planetary Mill
PULVERISETTE 5
premium linePlease note: For the Planetary Mill PULVERISETTE 5 premium line, you require at least 2 grinding bowls of your choice and the corresponding number of grinding balls. The grinding bowl material must also be harder than the material to be ground. In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used. Please take note of the useful capacity, this is not identical with the bowl volume!
GRINDING BOWLS
-
Material data for grinding bowls / balls
Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material Agate SiO2 2.65 good soft to medium-hard samples Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples -
Recommended number of balls per grinding bowl
Grinding balls ≥ 5mmRecommended number of balls per bowl Grinding bowl/
Useful capacity (grinding material)125 ml
15 – 50 ml150 ml
20 – 70 ml250 ml
30 – 125 ml420 ml
60 – 200 ml500 ml
80 – 225 mlBalls diameter 20 mm 9 12 15 20 25 15 mm 25 35 45 60 70 10 mm 35 40 50 80 100 5 mm 600 900 1200 1800 2000 Grinding balls ≤ 3 mm
Recommended ball mass per grinding bowl in gramsGrinding bowl/
Useful capacity (grinding material )150 ml
20 – 70 ml250 ml
30 – 125 ml500 ml
80 – 225 mlMaterial Zirconium oxide 170 g 400 g 800 g Hardened, stainless steel 350 g 500 g 1100 g Hardmetal tungsten carbide 800 g 1000 g 2100 g -
Additional Information
Grinding balls with diameter 3 mm and less must be weighed out. The above table provides you with the required mass per grinding bowl.
The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.
In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.
Please select 2 grinding bowls offered in the sizes 500 ml, 420 ml, 250 ml, 150 ml and 125 ml to perfectly match your sample volume. The useful capacity of the grinding bowls can be found in the selection aid. All grinding bowls of the FRITSCH premium line are cased in stainless steel, have a label and the same inner diameter regardless of their volume.
For the best grinding results in each individual case, all grinding bowls are available in 4 different materials, thus directly preventing contamination of the samples as a result of undesired abrasion.
GRINDING BOWL 420-500 ML VOLUME
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 420 ml
Useful capacity: 60 … 200 ml
Weight net: 2.700 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 3.700 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 4.800 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 500 ml
Useful capacity: 80 … 225 ml
Weight net: 6.500 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BOWL 250 ML VOLUME
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 3.400 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.200 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 4.600 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 250 ml
Useful capacity: 30 … 125 ml
Weight net: 6.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BOWL 125-150 ML VOLUME
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 125 ml
Useful capacity: 15 … 50 ml
Weight net: 1.970 kg
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.500 kg
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 2.850 kg
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Grinding bowl with lid, seal ring and label
Grinding bowl volume: 150 ml
Useful capacity: 20 … 70 ml
Weight net: 4.200 kg
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Detailed information about the material you will find in the element analysis.
All grinding bowls for the Planetary Mill PULVERISETTE 5 premium line are delivered - as a standard – with a silicone seal ring. Due to this seal ring, the lid and grinding bowl are so tightly sealed that even grinding in suspension is possible absolutely problem-free.
When grinding in solvents or dry grinding of slightly caustic samples, we recommend our seal ring made of Viton (order no. 84.0163.15), because it has a much higher chemical resistance.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
Adapter for all grinding bowls PULVERISETTE 5 premium line 125-150 ml volume, essential for weight compensation, if only one grinding bowl is inserted in the grinding bowl holder.
Essential, if 2 grinding bowls 125-150 ml volume per grinding bowl holder are used.
If you would like to grind four samples simultaneously, simply order four grinding bowls, each with 125-150 volume and 2 stacking rings.
Accessories for all grinding bowls PULVERISETTE 5 premium line
Replacement grinding bowl seal tape for all grinding bowls premium line 125-500 ml volume.
Replacement seal ring Viton 88.49 x 3.53 mm for premium line grinding bowls 125-150 ml volume.
Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.
| General specifications | |
| Material | Viton |
| Chemical composition | |
| Element | Share % |
| Fluorine - F | 66 |
| Carbon - C | 34 |
| Physical and mechanical properties | |
| Density | 1.84 g/cm³ |
| Hardness | 75 shore A |
Explanations on hardness data
Replacement seal ring Viton 88 x 4 mm for premium line grinding bowls 250-500 volume, all gassing lids for premium line grinding bowls 125-500 ml volume and all EASY GTM grinding bowls 250 ml volume.
Due to its much higher chemical resistance, it's perfect for grinding in basic solvents or dry grinding of slightly caustic samples.
| General specifications | |
| Material | Viton |
| Chemical composition | |
| Element | Share % |
| Fluorine - F | 66 |
| Carbon - C | 34 |
| Physical and mechanical properties | |
| Density | 1.84 g/cm³ |
| Hardness | 75 shore A |
Explanations on hardness data
GRINDING BALLS
-
Material data for grinding bowls / balls
Material Main component of the material Density g/cm³ Abrasion resistance Used for grinding material Agate SiO2 2.65 good soft to medium-hard samples Zirconium oxide ZrO2 5.7 very good fibrous, abrasive samples Hardened, stainless steel Fe – Cr 7.7 good hard, medium-hard, brittle samples Hardmetal tungsten carbide WC 14.3 very good hard, abrasive samples -
Size of the grinding balls
Type of sample material Suitable ball diameter Hard samples with a maximum feed size of 10 mm 20 mm Average feed size of ≤ 5 mm 20 mm, 15 mm, or 10 mm Fine material 0.1 - 0.5 mm 10 mm or smaller Very fine material 0.1 mm 3 mm or smaller Homogenisation of dry or liquid samples 20 mm or smaller Homogenisation of viscous samples 20 mm -
Recommended number of balls per grinding bowl
Grinding balls ≥ 5mmRecommended number of balls per bowl Grinding bowl/
Useful capacity (grinding material)125 ml
15 – 50 ml150 ml
20 – 70 ml250 ml
30 – 125 ml420 ml
60 – 200 ml500 ml
80 – 225 mlBalls diameter 20 mm 9 12 15 20 25 15 mm 25 35 45 60 70 10 mm 35 40 50 80 100 5 mm 600 900 1200 1800 2000 Grinding balls ≤ 3 mm
Recommended ball mass per grinding bowl in gramsGrinding bowl/
Useful capacity (grinding material )150 ml
20 – 70 ml250 ml
30 – 125 ml500 ml
80 – 225 mlMaterial Zirconium oxide 170 g 400 g 800 g Hardened, stainless steel 350 g 500 g 1100 g Hardmetal tungsten carbide 800 g 1000 g 2100 g -
Additional Information
Grinding balls with diameter 3 mm and less must be weighed out. The above table provides you with the required mass per grinding bowl.
The specified ball filling per bowl is the minimum quantity and should possibly be increased depending on the material properties. The useful capacity depends on the type of material. In exceptional cases, the number of grinding balls can be reduced by up to 15 %. However, increased abrasion should be expected. In general, smaller grinding balls achieve finer grinding results.
In normal cases, grinding bowls and balls of the same material are used. To shorten the grinding time, grinding bowls and balls with a higher density and correspondingly higher impact energy can be used.
For achieving best grinding results grinding balls are available in 0.1 - 20 mm diameters and in different materials, thus directly preventing contamination of the samples as a result of undesired abrasion. The recommended number of balls per grinding bowl can be found in the selection aid.
GRINDING BALLS 20 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ML, 125 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS 15 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ML, 125 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: medium-hard, brittle samples
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS 10 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ml, 125 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
Grinding balls made of agate with 10 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 10 pieces.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS 5 MM DIAMETER FOR GRINDING BOWL 500 ML, 420 ML, 250 ML, 150 ml, 125 ML
General material specification:
Material: agate - SiO2
Abrasion resistance: good
Suitable for: soft to medium-hard sample
100 grinding balls made of agate with 5 mm dia. weigh approx. 17 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
Grinding balls made of agate with 5 mm dia. are also recommended as sieving aid for dry sieving of material with a high proportion of fine particles.
Recommended number per sieve: 15 pieces.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
100 grinding balls made of zirconium oxide with 5 mm dia. weigh approx. 38 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
100 grinding balls made of hardened, stainless steel with 5 mm dia. weigh approx. 52 g.
With the weight information, the high number of balls per grinding bowl can be determined by weighing.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
100 grinding balls made of hardmetal tungsten carbide with 5 mm dia. weigh approx. 97 g. With the weight information, the high number of balls per grinding bowl can be determined by weighing.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
GRINDING BALLS ≤ 3 MM DIAMETER FOR GRINDING BOWL 500 ML, 250 ML, 150 ml
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 2 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 1 mm dia. are packed in 100 g units and must be weight out. In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.5 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: zirconium oxide - ZrO2
Abrasion resistance: very good
Suitable for: fibrous, abrasive samples
Grinding balls made of zirconium oxide with 0.1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Zirconium oxide ZrO2 |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide - ZrO2 | 95% |
| Yttrium oxide -Y2O3 | 5% |
| Physical and mechanical properties | |
| Density | 6.0 g/cm³ |
| Hardness Vickers | 1300 (HV10) |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardened, stainless steel - Fe-Cr
Abrasion resistance: good
Suitable for: hard, medium-hard, brittle samples
Grinding balls made of hardened, stainless steel with 1 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 3 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 1.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
General material specification:
Material: hardmetal tungsten carbide - WC
Abrasion resistance: very good
Suitable for: hard, abrasive samples
Grinding balls made of hardmetal tungsten carbide with 0.6 mm dia. are packed in 100 g units and must be weight out.
In the selection aid you can find the required mass per grinding bowl.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
SPECIAL ACCESSORIES
The software MillControl enables the automatic control of the Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. With the utilization of 2 EASY GTM grinding bowls with special lid and transmitter you turn your PULVERISETTE 5 premium line into an analytical measuring system for visualizing pressure and temperature during the grinding process.

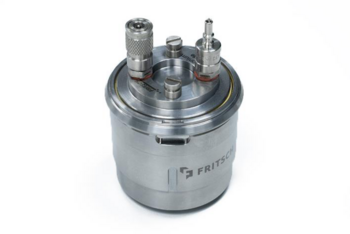

For quickly and safely grinding in inert gas and for mechanical alloying premium line gassing lids are recommended.
A certificate for IQ/OQ documentation is also available.
SOFTWARE MILLCONTROL
The software MillControl enables the automatic control of the Planetary Micro Mill PULVERISETTE 7 and Planetary Mill PULVERISETTE 5 premium line and validation of the grinding process. The actual rotational speed and power consumption are checked and documented. The software is a distinct safety feature, since overpressure and a rise in temperature are avoided and defects on the mill and a sticking of the sample material prevented.
Detailed information on MillControl is available here
EASY GTM - GAS PRESSURE AND TEMPERATURE MEASURING SYSTEM FOR CONTROLLING THE MILLING PROCESS
Turn your Planetary Mill PULVERISETTE 5 premium line and Planetary Micro Mill PULVERISETTE 7 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software.
Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
Especially practical: The receiver unit needs only to be inserted and adjusted just once – the software MillControl via USB only installed once - regardless of the number of EASY GTM-bowls used.
Only one receiver unit with software MillControl has to be ordered. EASY GTM is also available for further grinding bowl volumes on request.
For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line and into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in hardened, stainless steel and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and and hardmetal tungsten carbide.
Only one receiver unit with software MillControl has to be ordered.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
For the use of the EASY GTM-System - for controlling the grinding process and continuous measurement of gas pressure and temperature.
Turn your Planetary Mill PULVERISETTE 5 premium line into an analytical measuring system by using the EASY GTM system (Gas Pressure and Temperature Measurement System) with special lid and transmitter as well as a receiver board and the included MillControl software. Your advantage: easy and safe monitoring and analysis of thermal effects, physical and chemical reactions or increases/decreases in pressure through continuous measurement of gas pressure and temperature directly in the grinding bowl. The mill is automatically controlled to ensure that the set parameters are not exceeded.
EASY GTM grinding bowls are also available in zirconium oxide and stainless steel.
Only one receiver unit has to be ordered, regardless of the number of EASY GTM-bowls used.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
Accessories for single-use technology
The grinding bowl made of aluminium with 5 tubes of 25 ml volume is utilized for the single-use technology for our Planetary Mill P5 premium line.
The set of set of tubes 25 ml volume with lids (set = 10 pieces) for inserting into our grinding bowl made of aluminium order no. 50.6436.00.
ACCESSORIES FOR GRINDING IN INERT GAS AND FOR MECHANICAL ALLOYING
GASSING LID WITH VALVES AND SEAL RING
Agate gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Zirconium oxide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
hardened stainless steel gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Hardmetal tungsten carbide gassing lid with valves and seal ring for all grinding bowls premium line 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
By using this special lid, the grinding bowl can be used for grinding in inert gas and for mechanical alloying - quickly and safely.
Gassing lids with Swagelok valves are available on request.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
Screw-on grinding bowl lids with seal ring
Screw-on grinding bowl lid agate with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.
| General specifications | |
| Material | Agate – SiO2 |
| Chemical composition | |
| Element | Share % |
| Silicon oxide– SiO2 | 99.9 |
| Aluminium – Al2O3 | < 0.02 |
| Iron oxide – Fe2O3 | < 0.02 |
| Calcium oxide – CaO | < 0.02 |
| Magnesium oxide – MgO | < 0.02 |
| Sodium oxide – Na2O | < 0.02 |
| Potassium oxide – K2O | < 0.02 |
| Manganese oxide – MnO | < 0.02 |
| Physical and mechanical properties | |
| Density | 2.65 g/cm³ |
| Hardness | 6.5 – 7 Mohs |
Explanations on hardness data
Screw-on grinding bowl lid zirconium oxide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.
| General specifications | |
| Material | Zirconium oxide - ZrO2 |
| Chemical composition | |
| Element | Share % |
| Zirconium oxide – ZrO2 | 94.2 - 95.2 |
| Hafnium oxide – HfO2 | 1 - 2 |
| Magnesium oxide – MgO | 3.5 |
| Silicon dioxide – SiO | 0.1 |
| Aluminium oxide – Al2O3 | 0.1 |
| Other | 0.1 |
| Physical and mechanical properties | |
| Density | 5.7 g/cm³ |
| Hardness Vickers | 1200 (HV10) |
Explanations on hardness data
Screw-on grinding bowl lid hardened stainless steel with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.
| General specifications | |
| Material | hardened stainless steel – 1.4125 |
| ISO/EN/DIN code | X105CrMo17 |
| Chemical composition | |
| Element | Share % |
| Iron– Fe | 81.4 |
| Chromium – Cr | 17 |
| Carbon – C | 1.1 |
| Molybdenum – Mo | 0.5 |
| Physical and mechanical properties | |
| Density | 7.7 kg/dm³ |
| Hardness | ~ 60 HRC |
Explanations on hardness data
Screw-on grinding bowl lid hardmetal tungsten carbide with seal ring for grinding bowls 500 ml, 420 ml, 250 ml, 150 ml and 125 ml volume for PULVERISETTE 5 premium line.
With the screw-on grinding bowl lids, you can seal the grinding bowls of the PULVERISETTE 5 premium line gas-tight for transport between filling in the glove box and the mill.
| General specifications | |
| Material | Tungsten carbide - WC |
| ISO/EN/DIN code | |
| Chemical composition | |
| Element | Share % |
| Tungsten carbide – TC | 88 |
| Cobalt – Co | 12 |
| Physical and mechanical properties | |
| Density | 14.3 g/cm³ |
| Hardness | 89.7 HRA |
Explanations on hardness data
CERTIFICATION
IQ/OQ documentation (questionnaire format - implementation by customer) for the independent utilization for the support of instrument qualification in the quality management system for the Planetary Mill PULVERISETTE 5 premium line.
